Stainless Steel High Pressure Micro Constant Flow Pump For Acid base Liquid 0.001ML/M

1. Product Overview

The stainless steel high-pressure constant-flow pump is a constant-flow conveying device designed for laboratory and industrial precision conveying applications, suitable for the stable delivery of water and other liquids compatible with stainless steel. Based on the existing specifications, this series covers a flow rate range of 0–300 mL/min, meeting the requirements for small-to-medium flow high-pressure conveying and quantitative liquid feeding.

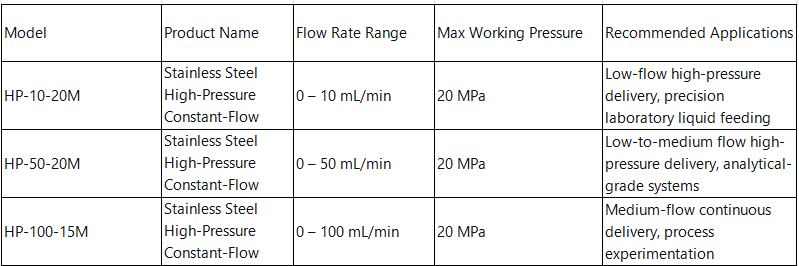

This series adopts a unified body design and control box configuration. The main differences among models are concentrated in key selection parameters such as flow rate range and maximum working pressure.

1.1 Main Features

• Four-plunger structure, providing stable output and suitability for continuous conveying.

• Supports essential control functions including flow rate adjustment, quantitative dosing, and automatic intermittent quantitative dosing.

• Stainless steel pump body with a separate control box for convenient on-site installation and operation.

• Unified appearance across the series with clear model differentiation for easy selection.

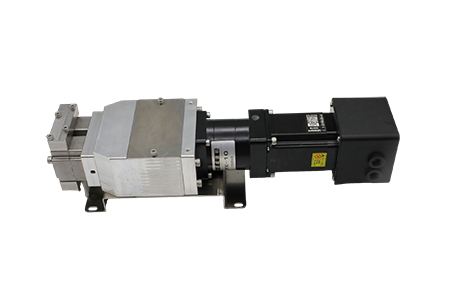

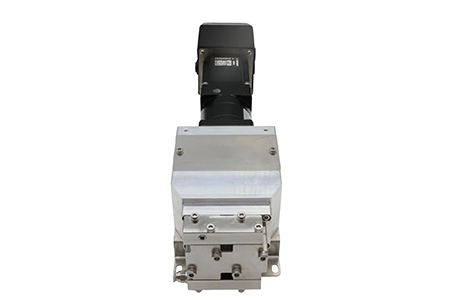

1.2 Physical Appearance

• Overall dimensions (complete unit): 379.3 × 100 × 90.5 mm.

• Main body dimensions: 233 × 100 × 90.5 mm.

• Inlet port: G1/8 thread.

• Outlet port: G1/8 thread.



  5. Installation and Operating Instructions

  • Ambient temperature: recommended 10°C – 35°C.

  • Ambient humidity: recommended 20% – 80%, with no condensation.

  • The equipment should be installed on a stable, level workbench with sufficient load-bearing capacity.

  • A minimum clearance of 60 mm should be reserved at the rear of the equipment for heat dissipation.
