TLB Rotor Pump Stainless Steel Food Pump Fluid Pump

Product Introduction

The TLB Rotary Lobe Pump is a high-performance positive displacement rotary pump designed for efficient and gentle transfer of high-viscosity, high-concentration, and particle-laden fluids. Its unique rotor and pump chamber structure enables stable flow with low pulsation, making it an ideal solution for industries such as food processing, pharmaceuticals, chemicals, and environmental engineering.

This article provides a detailed breakdown of the TLB rotor pump internal structure, including its working principle, rotor types, and sealing configurations.

Working Principle – Rotor Pump Simulation Diagram

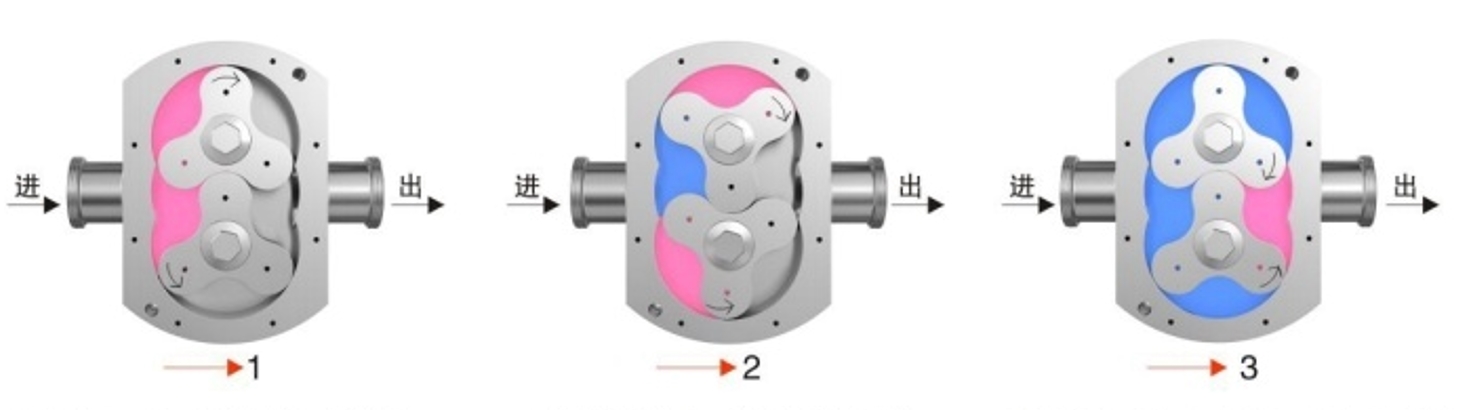

The TLB rotor pump operates using two synchronized rotors that rotate in opposite directions. The working process consists of three stages:

1. Inlet stage
   At the pump inlet, the two rotors rotate synchronously in opposite directions. The cavity formed by the rotors and the pump chamber gradually increases in volume, creating a vacuum that draws the material into the pump.

2. Transfer stage
   As the rotors continue to rotate, the material is smoothly transferred into the cavity formed by the rotor chambers and the pump chamber.

3. Discharge stage
   At the pump outlet, the two rotors again rotate in opposite directions. The cavity volume now decreases, forcing the material out of the pump under pressure.

This design ensures continuous, pulsation-free flow and excellent self-priming capability.

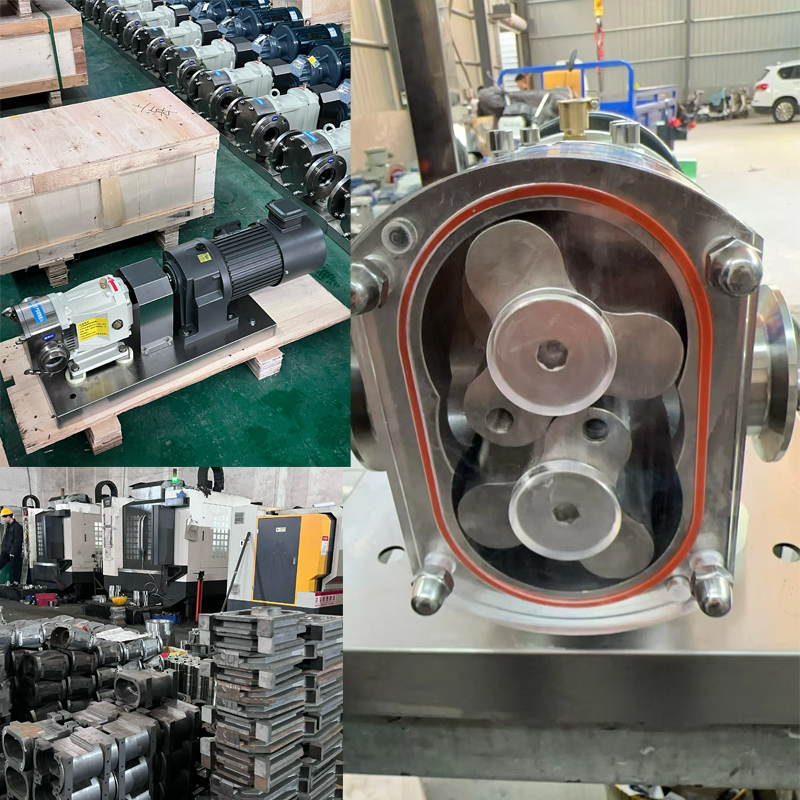

Rotor Types – Selection Guide

The TLB rotor pump offers three rotor configurations to suit different fluid properties and application requirements.

① Two-Lobe Rotor (Double Impeller)

Best for:

• Material viscosity > 8,000 cP

• High-concentration or poor-flowability fluids

• Fluids containing small to medium particles

Advantage:
The two-lobe design allows for smoother feeding of thick or particle-laden materials, reducing inlet resistance.

② Three-Lobe Rotor (Tri-Impeller)

Best for:

• General-purpose applications

• Wide range of fluid viscosities and types

Advantage:
Excellent dynamic balance and quiet operation. The three-lobe rotor provides balanced performance across flow rate, pressure, and efficiency. It is the most widely used rotor type in the TLB series.

③ Multi-Lobe Rotor (4 to 12 Lobes)

Best for:

• Low-speed, low-flow applications

• Scenarios requiring high output stability for both flow and pressure

Advantage:
Multi-lobe rotors (4–12 lobes) meet the requirements of various specialized conveying processes, offering ultra-smooth flow and precise metering capability.

Seal Configurations – Leakage Prevention & Durability

The TLB rotor pump supports multiple mechanical seal types to accommodate different operating conditions and fluid characteristics.

Seal Types Available:

Seal Materials:

• Seal faces: Hard alloy, silicon carbide, graphite

• O-ring materials: Fluoro rubber (FKM), fluorinated rubber, perfluoroether (FFKM)

Note: For special operating conditions, packing seals can also be provided upon request.

Key Applications

The TLB rotor pump is suitable for transferring:

• High-viscosity fluids (e.g., syrup, honey, crude oil, glue)

• High-concentration slurries and pastes

• Particle-laden liquids (e.g., fruit pulp, sludge, ceramic slurry)

• Shear-sensitive materials (e.g., latex, polymer solutions, biological fluids)

Typical Industries:

• Food & Beverage

• Pharmaceutical & Biotechnology

• Chemical & Petrochemical

• Environmental Protection (wastewater, sludge transfer)

• Cosmetics & Personal Care

Why Choose TLB Rotor Pump?

✅ Positive displacement rotary pump design – consistent flow regardless of pressure changes
✅ Self-priming capability – no need for manual filling before startup
✅ Low shear – preserves product integrity for shear-sensitive materials
✅ Multiple rotor options – customizable for viscosity from low to >1,000,000 cP
✅ Reliable sealing systems – versatile configurations for corrosive, high-temperature, or hazardous fluids
✅ Easy maintenance – compact structure with modular components
