Typical application industries
Biomedical Science
Potions/test tubes/plasma/culture fluid/biological agents/oral liquids/antibiotic vaccines/soft capsules/gels/Vaseline/nucleic acids/water injections/blood sample collection reagents, etc.
energy regeneration
Battery electrolyte/reagent/capacitor electrolyte/polymer battery/power battery/automatic/semi-automatic/manual injection machine and other supporting equipment
Cosmetic chemicals
Nail polish / perfume / essence / skin care products / moisturizer / mascara / lipstick / hyaluronic acid / anti-tank spray, etc.
general industry
Acid / Alkali / Glue / Adhesive / Ink / UV glue / Shampoo / E-cigarette oil / Butter / Machine oil / Heat pipe injection / Semiconductor cleaning solution / Micro-dispensing machine, etc.
Food Industry
Jam / yogurt / cream / mustard / pudding / condiments / honey / sauce / tomato juice / butter / chocolate / beverage filling, etc.
Technical principles

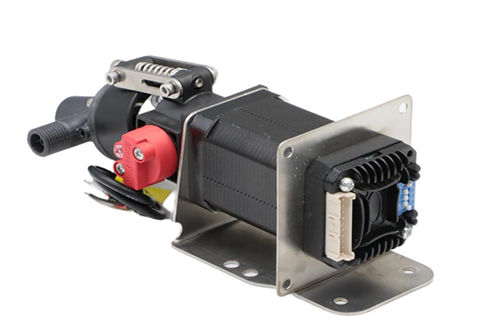

The ceramic valveless metering pump is a plunger-type small metering pump made of fine ceramic material with excellent performance. The unique valveless structure effectively solves common problems of general metering pumps such as clogging and seizure. The machining accuracy of the main parts reaches the micron level, enabling ultra-high discharge accuracy. Widely used in micro-precision injection of medicinal liquids and transportation of various high-viscosity liquids
Ultra-high-precision liquid medicine adding device
Example
Medical equipment: dialysis machine, blood analyzer
Cleaning equipment: cleaning agent and chemical bleach injection
Fuel cell: pure water injection
Food industry: quantitative injection of food additives, injection of fragrance essence, sampling
Paper industry: quantitative addition of chemicals and dyes
Capacitor: Addition of phosphoric acid solution
Excellent chemical resistance
Suitable for various chemicals
The overflow end material is made of ceramics and PTFE to ensure
Durable delivery of acids, bases or organic solvents.

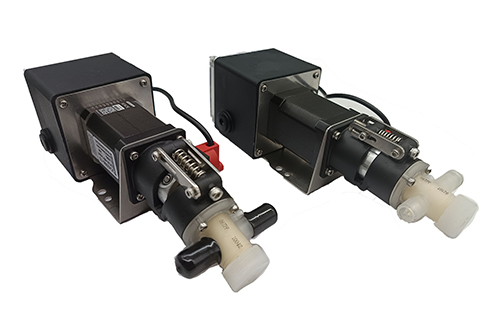

Compact appearance
Ideal for use in a variety of installations
Compact appearance, light structure, horizontal or vertical
Ready to install, ideal for OEM installations
Equipment etc. No need to change the pipeline, just change
The rotation of the motor can realize the forward and reverse direction of the liquid.
delivery.
Anti-air lock design
The mixed gas will be discharged during the operation of the pump.
out, reducing the possibility of air lock failure.
Note: Depending on different installation conditions and liquid characteristics, the mixed gas may not be completely discharged. Please consult CIXIFM customer service.
Basic parameter table
|
model |
Plunger diameter |
Wetted material |
Rotating speed
RPS
|
Maximum discharge volume
mL/min
|
Maximum discharge pressure MPa |
control |
|
WFB-06P-CU |
6mm |
PP |
0-10 |
80 |
1.0 |

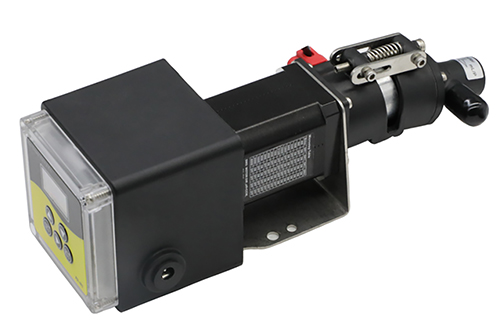

With control panel |
|
WFB-06T-CU |
6mm |
Teflon |
0-10 |
80 |
1.0 |
With control panel |
|
WFB-06P-BJ |
6mm |
PP |
0-10 |
80 |
1.0 |
No control panel |
|
WFB-06T-BJ |
6mm |
Teflon |
0-10 |
80 |
1.0 |
No control panel |
|
WFB-06P-DS |
6mm |
PP |
0-10 |
80 |
1.0 |
Fixed speed motor |
|
WFB-06T-DS |
6mm |
Teflon |
0-10 |
80 |
1.0 |
Fixed speed motor |
|
WFB-12P-CU |
12mm |
PP |
0-10 |
600 |
1.0 |
With control panel |
|
WFB-12T-CU |
12mm |
Teflon |
0-10 |
600 |
1.0 |
With control panel |
|
WFB-12P-BJ |
12mm |
PP |
0-10 |
600 |
1.0 |
No control panel |
|
WFB-12T-BJ |
12mm |
Teflon |
0-10 |
600 |
1.0 |
No control panel |
|
WFB-12P-DS |
12mm |
PP |
0-10 |
600 |
1.0 |
Fixed speed motor |
|
WFB-12T-DS |
12mm |
Teflon |
0-10 |
600 |
1.0 |
Fixed speed motor |
The above table shows the performance measured when transporting clean water at room temperature.
The theoretical suction lift of the pump is more than 4 meters. The actual suction lift depends on the characteristics of the transported liquid.
After conveying easily crystallized liquid or adhesive liquid, the soft cavity bushing needs to be cleaned.
No control panel voltage AC220V to DC24V 2A
Fixed speed motor/stepper motor voltage DC24V 4A
06 valveless pump, ceramic plunger is standard, chrome-plated plunger is optional
Special order needs to be noted
