CX-FS-FE20 piston flow switch

Set range: See parameter list

Accuracy: ±5%FS

Medium temperature: Max.90 Celsius degree

Protective class: IP65

Delay: Depend on the switch point , min. point 0.6L/Min

INQUIRY

Application

CX-FS-FE20 type used for gas and liquid . Suitable for industrial automation / mechanical equipment/compressed air industry /refrigeration and air conditioning .

Feature

1,On-line installation 2,Mechanical type flow switch 3, Suitable for gas and liquid 4,Firm plastic, aluminum or stainless steel housing 5,Small pressure loss 6,Good repeatability and stain resistance 7,The mechanical part isolate from the electric part totally , it is economical type and suit for small flow range. 8, 3 times piston journey respond to original FE20 , which makes sure the high accuracy . 9, With switch setting scale ,so the used does not need to set in field . 10, LED display the switch state (option: double switch value output)

Technical data

Set range: See parameter list

Accuracy: ±5%FS

Delay: Depend on the switch point , min. point 0.6L/Min

Switch set scale: Calibrate it under the horizontal installation for water medium (20 C) . Installation position : The medium and the temperature will effect the switch value .

LED display: Display the switch state , if the LED is directly current supply .

It will no LED display for AC supply .

Connection: M12

Output: Reed switch, capacity 24VDC / 250VAC ,100mA

Pressure proof: 10bar(plastic), 50bar(aluminum), 100bar( stainless steel)

Average pressure loss: 0.3bar( at 25L/min)

Medium temperature: Max.90 Celsius degree

Protective class: IP65

CX-FS-FE20…GP material: Housing: POM plastic,

Piston: POM plastic

Reed switch: stainless steel

Seal: NBR

△CX-FS-FE20…GA material : Housing: anode alumina

Piston: POM plastic

Reed switch: stainless steel

Seal: NBR

△CX-FS-FE20…GK material: Housing: stainless steel

Piston: POM plastic

Reed switch: stainless steel

Seal: NBR

Parameter list

Type	Pressure Bar	Max. flow rate L/min（water）	Adjustable range L/min（water）	G mm	L mm	H mm	B mm	X mm	Weight Kg
FE20-008…L(X)008	50	40	0.6(0.1)..8(7)	G1/4	93	36	30	12	0.22(0.53)
FE20-010…L(X)008	50	40	0.6(0.1)..8(7)	G3/8	93	36	30	15	0.20(0.51)
FE20-015…L(X)008	50	40	0.6(0.1)..8(7)	G1/2	93	36	30	15	0.18(0.48)
FE20-020…L(X)008	50	40	0.6(0.1)..8(7)	G3/4	105	36	35	15	0.23(0.65)
FE20-025…L(X)008	50	40	0.6(0.1)..8(7)	G1	105	36	40	15	0.32(0.82)
FE20-008…L(X)015	50	40	1(0.5)…15(13)	G1/4	93	36	30	12	0.22(0.53)
FE20-010…L(X)015	50	40	1(0.5)…15(13)	G3/8	93	36	30	15	0.20(0.51)
FE20-015…L(X)015	50	40	1(0.5)…15(13)	G1/2	93	36	30	15	0.18(0.48)
FE20-020…L(X)015	50	40	1(0.5)…15(13)	G3/4	105	36	35	15	0.23(0.65)
FE20-025…L(X)015	50	40	1(0.5)…15(13)	G1	105	36	40	15	0.32(0.82)
FE20-015…L(X)025	50	40	2(0.8)…25(25)	G1/2	93	36	30	15	0.18(0.48)
FE20-020…L(X)025	50	40	2(0.8)…25(25)	G3/4	105	36	35	15	0.23(0.65)
FE20-025…L(X)025	50	40	2(0.8)…25(25)	G1	105	36	40	15	0.32(0.82)

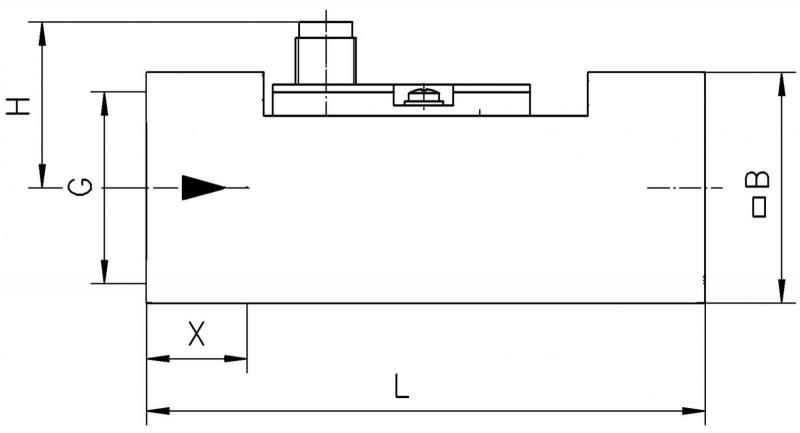

CXFE20-008… / FE20-010...

CXFE20-015...

CXFE20-020… / FE20-025...

Note :

1, The parameter in bracket is reset point, the parameter outside the bracket is action point .If the lower limit alarm (the monitoring flow rate is too small) ,at the time reference the reset parameter . If the upper limit alarm (the monitoring flow rate is too big) , then reference the action parameter .

2, Under vertically installing on horizontal pipe , then test to get the above parameter for 20 Celsius degree water..

Installation: Wiring: Medium:

Selection type

FE20-	008	G	D	L	015	M	1
FE20-								CXFE20 series piston type flow switch
	008							G1/4
	010							G3/8
	015							G1/2
	020							G3/4
	025							G1
		G						Female screw
			D					DC 24V±20%DC
			J					AC 230V±15%AC
				S				Plastic housing
				L				Anode alumina housing
				X				Stainless steel housing
					008			Set range :0.6…8L/min
					015			Set range :1…15L/min
					025			Set range :2…25L/min
						M		M12
						Z		Direct cable
							1	1 switch point output
							2	2 witches point output

1. It should mention the medium direction , medium ,pipe diameter and the expected set value ,when placing the order . Then we can set it before leaving factory .

2,If the medium is viscous medium , please notice the viscosity , temperature and medium .

3. If the medium is gas , please notice the pressure( meter pressure /absolute pressure) ,temperature and medium .

Optional accessory
