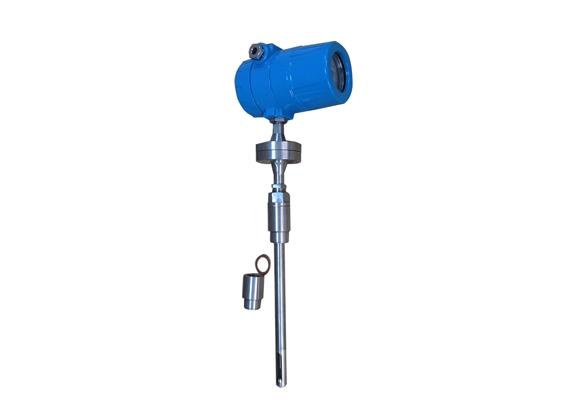

Insertion Thermal Gas Flow Meter
Today, a customer wanted to purchase an insertion thermal gas flow meter and provided the following details:
Medium: Moist air, water content 36g/Nm3
Medium temperature: 90℃
Pressure: 40mmwg
Measuring range: 80,000-120,000 KG/h
Wall thickness: 2mm
Inner diameter: 1400mm
Outer diameter: 1404mm
Connection: Insertion flange connection
Temperature and pressure compensation required
Online cleaning CIP available
4-20mA output, zero point adjustable on-site
Our technicians, after receiving the inquiry, recommended:
Vortex flow meter, thermal... Type without temperature and pressure compensation
CX-VFM-GB-1400-G-4/R4-D-D-I
Diameter: DN1400 (Insert Type)
Medium: Gas
Flow Rate: 30000-300000 kg/h
Power Supply: DC24V
Output: 4-20MA + RS485
Display: LCD
Temperature: -20 to 90℃
Pressure: 1.6Mpa
Accuracy: 2.5%
Material: Stainless Steel
Equipped with stainless steel flange installation, integrated temperature and pressure compensation. The air may contain a little dust, which is not a major issue. If it feels dirty, simply disassemble and clean the measuring body.
