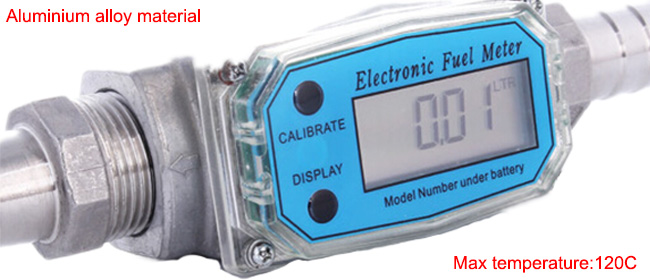

WLTFM Electric fuel turbine flowmeter

Brief Introduction for Electric fuel turbine flowmeter

1)Turbine flow meter control panel adopts Modular design, Computer modules are local shows,

2) it is full-featured and easy-to-use with Simple structure and clear interface.

3) size: 1/2” , 3/4” , 1” 2” electric fuel turbine flow meter

4) ISO,CE,SGS certificates for export

5) More 80% meters for export

6) consecutive years as gold supplier for export

This is main features of Electric fuel turbine flowmeter

1.High accuracy, Everlasting, Small volume turbine flowmeter

2.Lithim battery, can supply 9000 hours power

3.Module desi output module, sensor and long-distance transfers

4.It can be used with IS

5.Easy to change the spare parts inside, and easy to assembling and maintain

Technical Parameters for Electric fuel turbine flowmeter

Connecting Style	NPT(female thread) ANSI(flange)
Material	Aluminum or 316 stainless steel
Present dimension	1/2” , 3/4” , 1” 2”
Flow range	1/2” :1-10GPM (3.8-37.9LPM)
	3/4” : 2-20GPM (7.6-75.7LPM)
	1” :5-50 GPM (18.9-190LPM)
	1-1/ 2” : 10-100GPM (38.0-380LPM)
	2” : 20-200GPM (76-760LPM)
Accuracy	Turbine flowmeter with microlat
Turbine flowmeter with microkit	1/2’’	±1.5%
	3/4”	±1.0%
	1”	±1.0%
	1-1/ 2”	±0.5%
	2”	±0.5%
Repetition	±0.1%
Pressure class	300PSI/21
Temperature range	140F-+2500F(-400℃-1210℃)
	140F-+1400F(-100℃-600℃)
Material of connected parts	noumenon	Aluminum
	axletree	chinaware
	axes	carbide
	rotor	PVDF
	annulus	316
Supposed filter dimension	55
