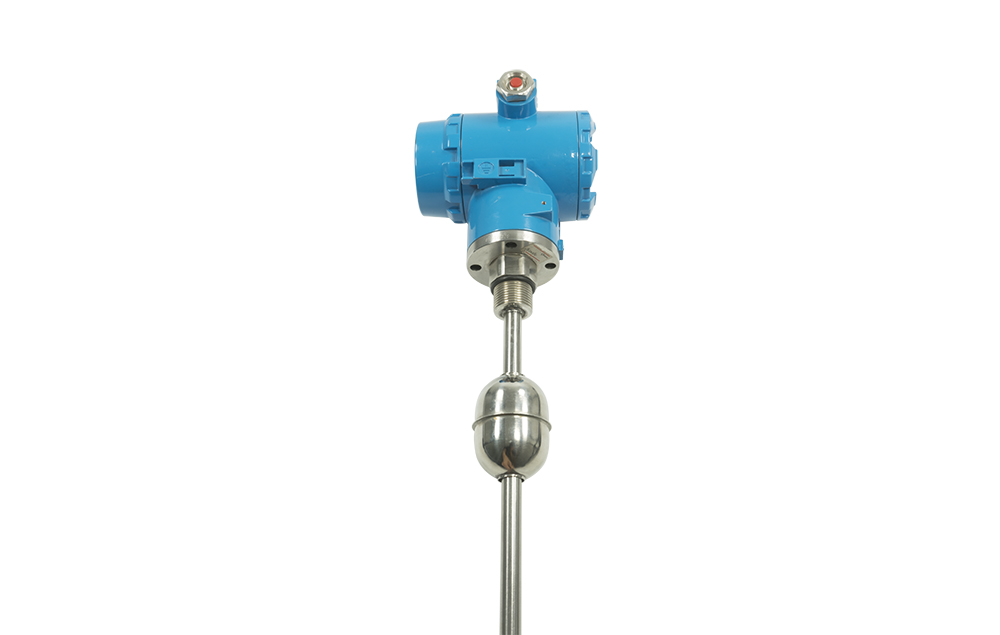

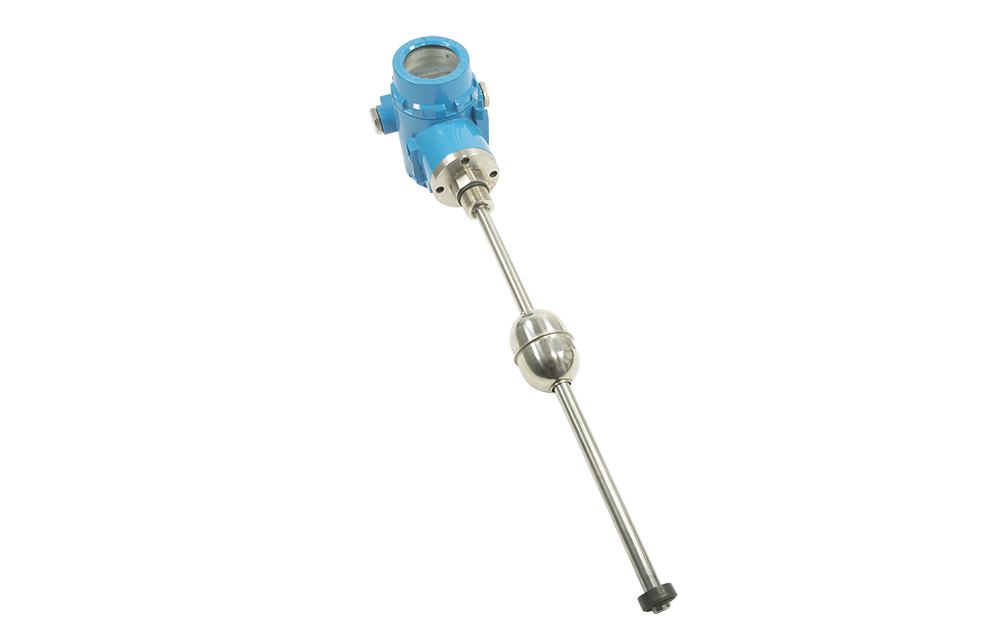

Magnetostrictive Level Gauge Level Transmitter Level Sensor

Magnetostrictive Level Gauge
Magnetostrictive Level Transmitter
Magnetostrictive Level Sensor
INQUIRY

CXCZ Magnetostrictive Probe is designed based on magnetostrictive theory. The electronic parts of the probe produce a low-voltage electric current "inquiring" pulse, at the same time the pulse produces a magnetic field which travels downwards along the waveguide. Because there are a group of magnets which also produce a magnetic field inside the floater which is moving up and down with the change of the liquid level, there are two magnetic fields in the probe. When two magnetic fields meet, the waveguide will twist and one wave will be produced, we call it the "returning" pulse. Then the electronic parts detect the cycle from producing the pulse of "inquiring" to receiving the pulse of "returning", i.e. the corresponding accurate change of liquid level. Installing temperature sensors inside the probe can make it detect and transfer the liquid temperature continuously at the same time.

Technical Parameters
l Measuring range：0.3～6m（can customize according to user’s request）
l Safety Barrier input voltage： DC12V/40mA
l Communication protocol：RS485 Baud rate:2400BPS
Transfer distance: 1.5Km
l Measuring accuracy：±1mm
l Repetition： 0.3mm
l Resolution: 0.1mm
l Nominal working pressure: 0～0.6MPa 0～1.6MPa 0～2.5MPa
l Working medium density:0.4～1.3g/cm3
l The material of the probe and the Electronic Storehouse: 316L stainless steel probe
l The probe is used for exactly measuring tanks and it had been applied in the fields of gas station,
chemical industry, foodstuff and pharmacy.

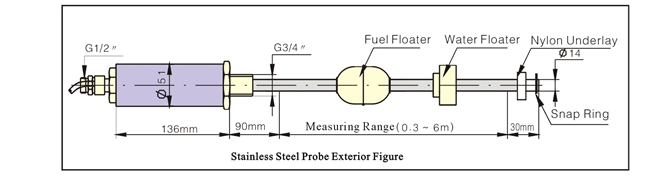

Exterior Frame
