98% concentrated sulfuric acid trifluoromethanesulfonic acid precision metering pump
98% concentrated sulfuric acid trifluoromethanesulfonic acid precision metering pump
piston pump
A customer needs to purchase a precision metering pump that can withstand highly corrosive liquids such as trifluoromethanesulfonic
acid and 98% concentrated sulfuric acid. The flow rate is about 55.5ml/min (about 5kg/hour, density 1.5g/m3). After receiving the consultation,

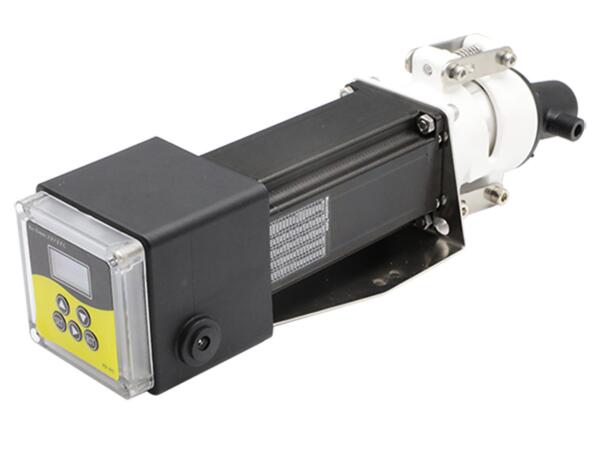

our technicians recommended him to use our ceramic valve piston pump metering pump:
CX-CP-PT-200-57-BJ-F-6
With forward and reverse rotation
Media used: Trifluoromethane sulfonic acid, 98% concentrated sulfuric acid
Piston diameter: 8mm
Displacement: 200 μ L/rev
Usage flow rate: approximately 55.5ml/min (about 5kg per hour, density 1.5g/m3)
Flow range: 100mL/m
Rated working speed: 0~500 r/min
Shell material: PT
Card sleeve external thread: 6mm
Export pressure: Negative pressure in the reaction kettle 50-200mba
Repetition accuracy: ≤ 0.5%
Fluid temperature: 50 ℃
Drive: 2-phase stepper motor with simple control for finished pumps
Voltage: DC24V
Input power: 50W
Fixed flow rate per revolution
