How Precision Flow Measurement Supports Medical Device Safety

Every time a patient undergoes gastric lavage or hemodialysis, their safety depends on more than just the machine itself – it depends on whether that machine is performing exactly as it should. And behind the scenes, ensuring that performance is a tiny but critical component: the flow meter.



In the world of medical equipment calibration, flow meters are the unsung heroes. They don't make headlines, but without them, hospitals and testing labs couldn't verify whether a dialysis machine is delivering the right flow rate, or whether a stomach pump is operating within safe pressure limits. That's where we come in.



What We're Talking About



The flow meters we supply are used in two specific types of medical testing equipment:



- Gastric lavage (stomach pump) testers – used to verify the performance of emergency gastric irrigation devices.

- Hemodialysis machine analyzers – used to calibrate and maintain the life-supporting machines that filter blood for kidney patients.



These testers are deployed in hospitals and independent calibration laboratories, where trained technicians run regular performance checks to ensure every machine on the ward is safe, accurate, and compliant with regulatory standards.



Each tester does three things: it measures flow, pressure, and temperature. And at the heart of each tester sits exactly one flow meter – the component that makes those flow measurements possible.



Why This Application Is Surprisingly Difficult



You might think measuring water flow at 30 to 180 mL/min sounds simple. But in this industry, it's anything but.



First, the operating pressure is extremely low – under 0.3 kgf/cm², which is close to zero differential pressure. Most flow measurement technologies lose accuracy or stop working altogether in this range. It's a genuine engineering challenge.



Second, the repeatability requirement is tight: customers demand 1% to 3% repeatability, depending on their specific testing protocols. In medical device calibration, you can't have one reading today and a different one tomorrow. Consistency is everything.



Third, the testers themselves are compact. There's no room for bulky flow sensors. The flow meter has to be small enough to fit into a tight enclosure without sacrificing performance.



And finally, the industry moves fast. Medical device standards are updated frequently, and tester manufacturers are constantly iterating their designs. What worked five years ago won't necessarily meet tomorrow's requirements. Flow meter specifications have to evolve right alongside them.



Our Solution: Elliptical Gear Technology

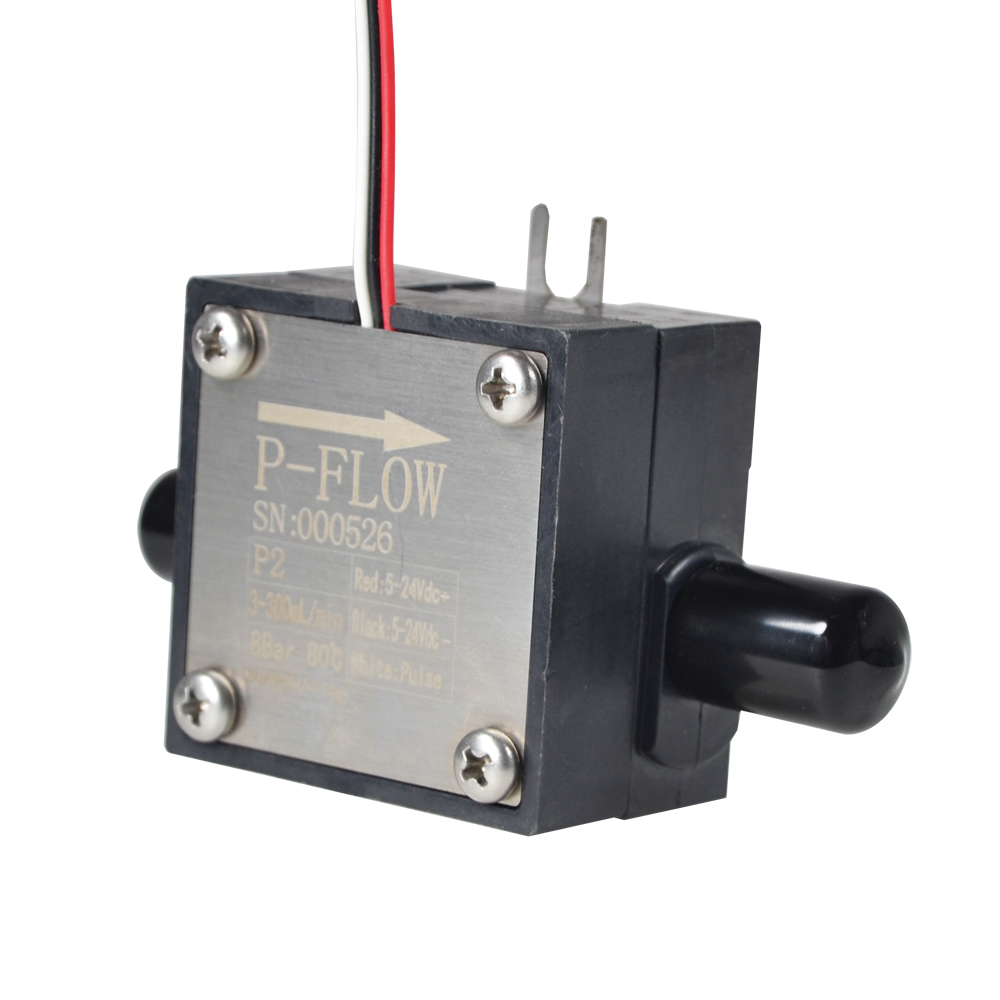

After evaluating multiple flow measurement technologies, leading tester manufacturers in China chose our CX-P2-F and CX-P5-F elliptical gear flow meters.



Why? Because elliptical gear meters are inherently well-suited for low-flow, low-pressure liquid applications. The positive displacement principle gives them excellent repeatability and linearity, even when the pressure drop is minimal. And our P-series design compresses that robust mechanism into a remarkably small package – ideal for space-constrained test equipment.



In practice, this means our flow meters deliver:



- Stable, drift-free readings across the entire 30–180 mL/min range

- Repeatability that consistently meets the 1%–3% bar, batch after batch

- Reliable performance at pressures below 0.3 kgf/cm², where other meter types struggle

- A compact footprint that integrates seamlessly into existing tester designs



Where We Stand in the Market



Here's a number we're proud of: Our flow meters rank first in shipment volume in China's domestic market for medical-device-testing applications.



In 2025, we shipped approximately 280 units to this segment. In the first half of 2026 alone, we've already delivered 50 units – and the year is far from over. These aren't huge numbers by industrial standards, but in this niche, precision-focused market, they represent real market leadership.



And the market itself is substantial. The total annual value of medical device performance testers in China is estimated at ¥400 to ¥500 million RMB. Each year, roughly 1,000+ complete tester systems are produced domestically – and every single one of them needs a flow meter.



Looking Ahead



As medical technology advances, so do the demands on testing equipment. We're already seeing tighter accuracy requirements, smaller form factors, and faster product cycles. Our engineering team is continuously refining the CX-P series to stay ahead of those trends – not just to keep up, but to help set the standard.



Because at the end of the day, this isn't just about flow meters. It's about making sure that when a patient lies down for dialysis, or when a stomach pump is used in an emergency, the equipment performs exactly as intended. That's a responsibility we take seriously – one precise measurement at a time.
