Why Automotive Cleanliness Extraction Equipment Needs Oval Gear Flow Meters

Struggling with inconsistent cleanliness test results due to unstable extraction fluid volume?



For critical automotive components like engine blocks, pistons, transmission gears, and brake valves, cleanliness is non-negotiable. International standards such as ISO 16232, VDA19,
and Chinese GB/T requirements mandate a 6-step attenuation validation during parts cleaning extraction.



However, many suppliers face two painful issues:



1. Inconsistent extraction volume – Flow too high or too low ruins the 6-step particle decay curve.

2. Filter clogging – Sudden flow drop invalidates an entire batch of samples.

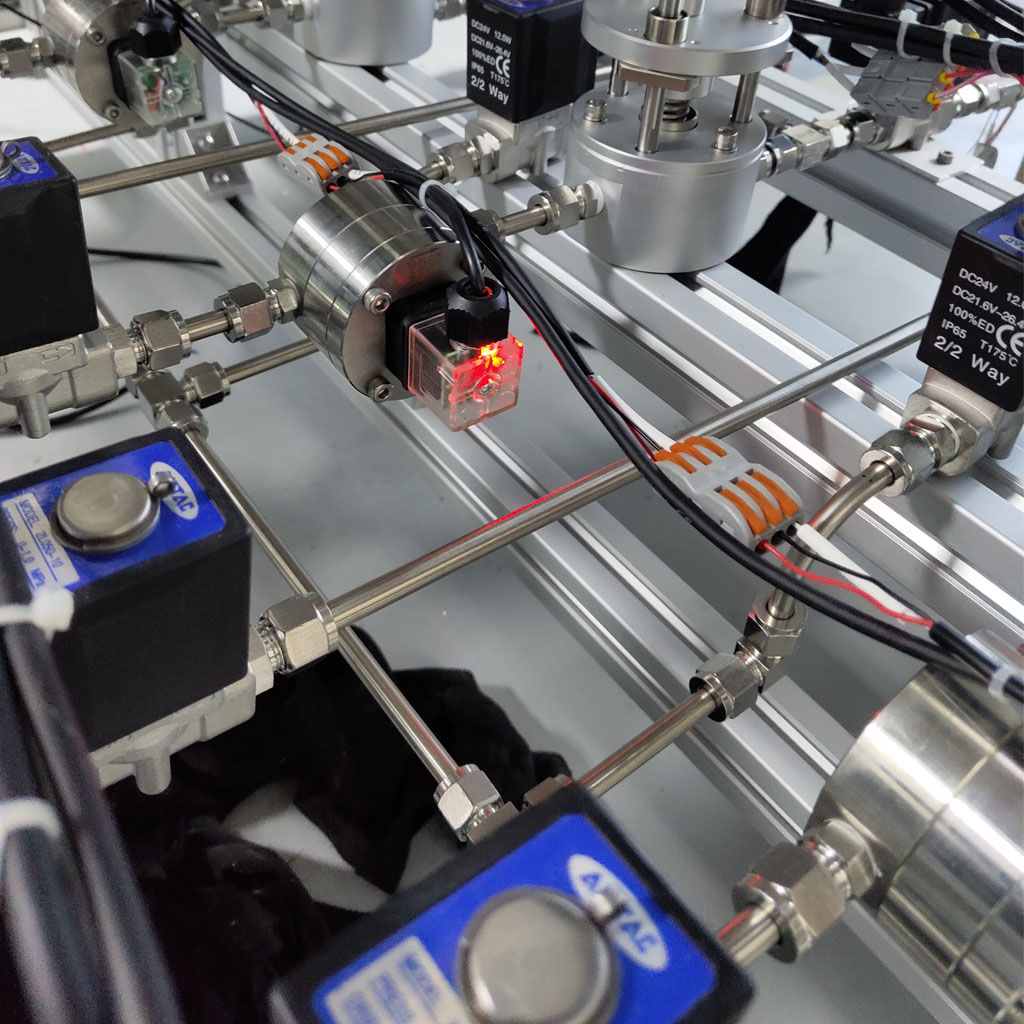

The solution is an oval gear flow meter, such as the M12AL or M9AL series.



Why oval gear?



High-precision pulse output – Measures low flows, for example 5 L/min, of cleaning oil, isopropanol, or ethanol with volumetric accuracy. It ensures every extraction cycle gets exactly the same fluid volume.



Real-time flow monitoring – Instantly detects pressure drops caused by clogged filters, preventing wasted runs and sample loss.



Chemically compatible – SS316L construction resists solvents and avoids secondary contamination.



Real-world result: One transmission housing supplier cut extraction volume error to less than plus or minus 0.5 percent and passed customer audits on the first attempt.



If your cleanliness extraction equipment still uses rotameters or unreliable sensors, upgrading to an oval gear flow meter is the fastest way to achieve compliant, repeatable results.
