Mass flowmeter installation

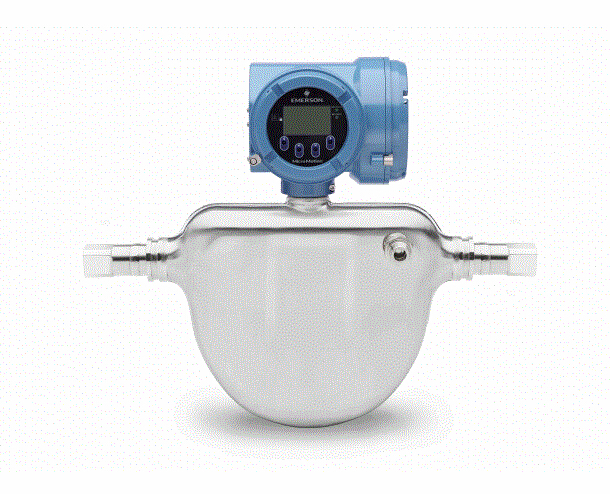

Installation of mass flowmeter, mass flowmeter is a new type of instrument developed and designed based on coriolis principle to measure mass flow of fluid mechanics in closed pipe immediately.It has high precision, long - term reliability, measurement verification accuracy is not affected by the relative density of the material.Most of them can ignore the harm of material temperature and pressure change to the accuracy of metrological verification.Thus.It is widely used in many industries that require high accuracy of metrological verification.

Here are a few things to keep in mind when actually installing

1. The selection of installation site shall prevent electromagnetic interference.The installation parts of sensors and intelligent transmitters and their cable paving should be as far as possible to avoid machines and equipment that easily cause strong magnetic field, such as high-power motors, electrical transformers, frequency conversion machines and equipment.

2. The mass flow sensor shall be installed with the sensor inflow mark consistent with the hydrodynamic inflow.The arrow symbol is biased to be consistent with the total flow direction of the internal configuration of the intelligent transmitter.(note: mass flow meters can be used in both applications.If install azimuth and specific inflow opposite, change the inflow configuration inside transmitter ok.

3. Coriolis mass flowmeter is an instrument for accurate measurement based on the vibration principle of the measuring tube. Therefore, when installing the sensor, it is necessary to consider to make a firm support point near the flange of the processing process pipeline on both sides (about 2 ~ 10 times the pipe via) to prevent vibration caused by the instrument panel and related pipelines.If obvious piping vibration is inevitable, it is proposed to use flexible piping to protect piping system software and instrument panel sensor.

4, because the mass flow meter is based on the principle of coriolis force, in order to prevent the force on the measurement precision of harm.Whether the measuring tube of mass flowmeter is installed upward or downward, the measuring tube must be maintained vertically or horizontally with the ground plane as far as possible.

5. The connection flange faces shall be parallel to each other during installation, and the management center of two flanges shall be located on the same center line to prevent additional ground stress.It is forbidden to use the sensor to straighten the upper, middle and lower processing pipelines, otherwise it will endanger the accurate measurement and even destroy the sensor.

6. In the upper, middle and downstream pipelines of the sensor, it is suggested to install cut-off valves and double-circuit power supply for convenient zero adjustment. In daily maintenance, it is also recommended to ensure that the sensor can be in full tube when not working.The flow control shall be carried out by the regulating valves in the middle and lower reaches of the flow meter.

7. Location of sensor installation

Make sure the material being measured fills the sensor thoroughly.For liquids or gas collection.For vapor or effusion, for thick, stains, high condensation point of the material to be easy to exhaust (according to the need, can also be modified on both sides of the bottom point valve).

8. For newly installed pipes or pipes that have not been used for a long time but have been opened soon, prior to the installation of mass flow meter, all pipes must be purged (especially upstream and downstream pipes) to ensure that there is no residual welding penetration or dirt in the pipes.
